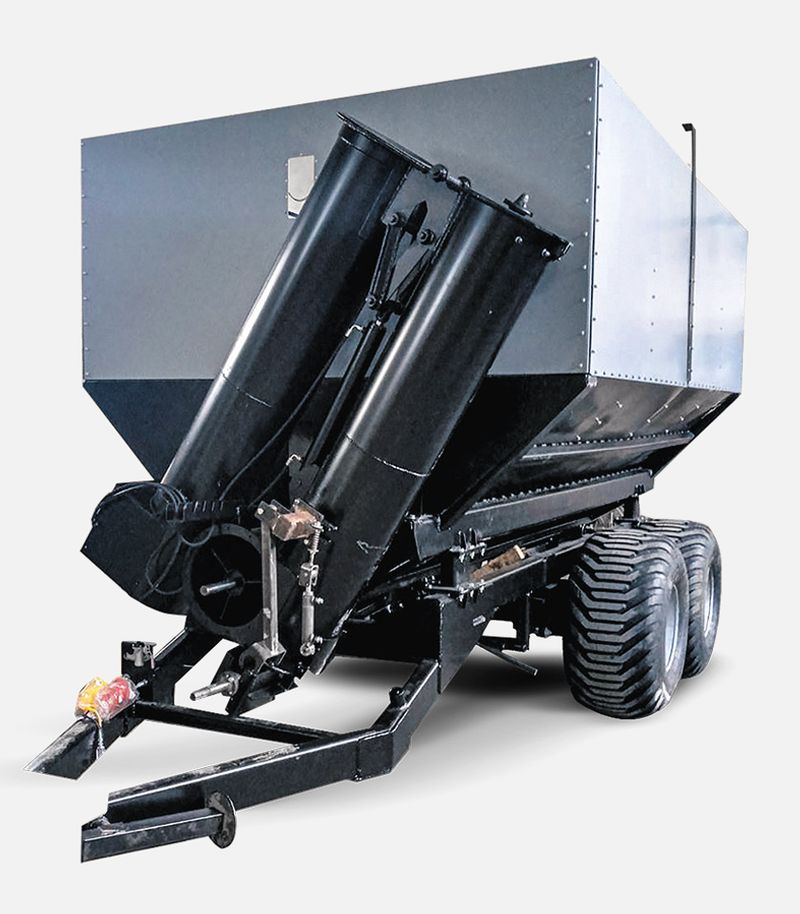

The POWERBANK series storage hoppers are designed to make the harvesting process more efficient, faster and more cost-effective.
The trailer ensures continuous operation of combine harvesters, prompt transportation of grain from the field to vehicles, and during sowing, fast loading of seeders with seeds and fertilizers.
30 m³
Volume
8 t/m
Speed
unloading
24 t
Load-
capacity
The POWERBANK series of reloading hoppers allow you to optimize the harvesting process.
The height of the top loading point of the hopper ensures convenient operation with all standards of the discharge augers of all types of combines.
Full unloading in less than 3 minutes! This is 30% faster than other hoppers.
The body of the POWERBANK-30 is equipped with a large hatch system for quick cleaning. This allows you to quickly clean the hopper from the remains of the cargo or to carry out urgent unloading in case of emergency.
Oversized hatches are convenient and allow you to work with wet cargo (for example, seeds).
The hopper suspension distributes the weight of the product evenly over the surface. Ground pressure does not exceed 1.4 kg/cm² when the hopper is fully loaded.
The wide profile tires provide increased cross-country ability with minimal ground pressure.
The POWERBANK-30 is equipped with a spring-loaded unit to ensure smooth, gentle movement.
During harvesting, the POWERBANK hopper is used to receive grain from combines (for example, right in the field), allows it to be transported to vehicles, and during sowing, it quickly loads seeders with seeds and fertilizers.
Technical characteristics POWERBANK |
|
|---|---|
| Useful hopper volume | 30 m³ |
| Load capacity | 24 000 kg |
| Weight of the hopper | 6 150 kg |
| Long table | 30 150 kg |
| Required tractor power | 180-220 hp. |
| Maximum speed | 40 km/h |
| Number of screws | 2 |
| Screw diameter | 410 mm |
| Screw performance (discharge speed) | 8 м³/хв |
| Number of axes | 2 |
| Rosvantazhannya height | 4 200 mm |
| Support load on the traction loop | 2 000 kg |
| Height of the pulling loop (adjustable) | 450–550 mm |
| Brake system | pneumatic, single circuit |
| Suspension type | tandem |
| Tyres | |
| basically | 550/60 R22.5" |
| option | 650/50 R22.5 або 650/50 R26,5" |
| Tire pressure | 2,8 |
| Pressure on the field surface | 0,74 kg/cm² |
| Gearbox and PTO shaft | Bondioli&Pavesi (Italy) |
| Quick discharge hatches (lower part) | 2 |
| Weighing system with printer | optionally |
| Awning system | optionally |
| Transport width | 2 650 mm |
| Dimensions in transport position (length × width × height) | 9 100 x 2 650 x 3 490 mm |
