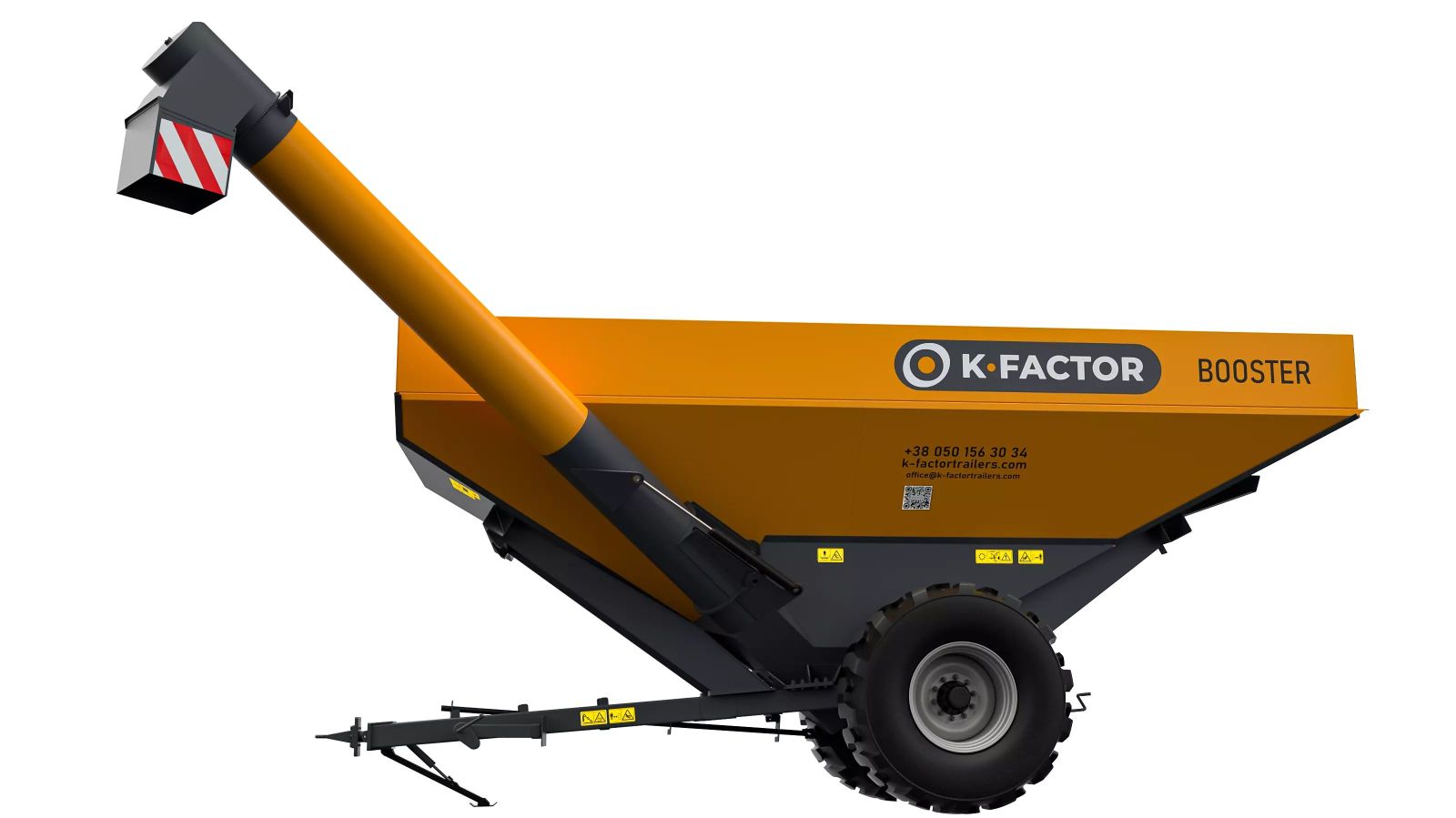

The BOOSTER storage hopper is a modern single-axle storage and reloading hopper with hydraulically variable track width.
BOOSTER is an innovative solution for farmers seeking to increase their productivity, minimize crop losses and ensure optimal storage and transportation conditions.
31 m³
Volume
3-3,5 m
Changeable
track width
11,5 t/m
Speed
unloading
22,5 t
Load-
capacity
The single-axle design, large tires and hydraulic track change give the BOOSTER bins high maneuverability, reduce fuel consumption and increase efficiency in the field.
This is the most reliable solution, because there is no suspension - nothing to break.
The absence of suspension (along with the variable track and large tires) ensures maximum stability of the BOOSTER on any bumps - the hopper simply does not sway while driving.
The wide profile low-pressure tires (800/65 R32) have a large contact area, which minimizes soil compaction. This protects the topsoil from damage and preserves its fertility.
The large wheel diameter allows the BOOSTER, with a full load and so on, to feel confident even on wet fields. The hopper does not fall through and does not damage the soil.

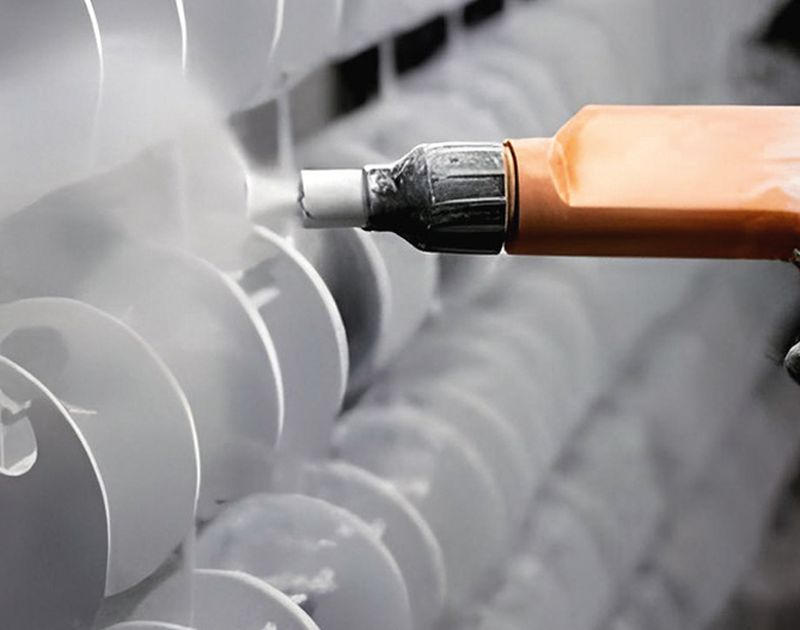

BOOSTER is made of S355 steel, and the surface is highly resistant to wear due to powder coating.
The absence of additional gears, belts or chains reduces the risk of breakdowns, simplifies maintenance and increases overall machine reliability.
The single-axle design, large tires and hydraulic track change give the BOOSTER bins high maneuverability, reduce fuel consumption and increase efficiency in the field.
The telescopic axis allows you to change the track width from 3 m to 3.5 m, which allows you to set the track that is necessary for a particular job.
This allows the hopper to run on a different track size than the tractor, which reduces soil compaction.
The correct track width setting reduces ground pressure and improves the stability of the hopper, as well as allows for transportation on public roads.
The BOOSTER does not roll over on uneven fields and has maximum passability even on uneven and wet soils.
Ensures minimal damage to crops during the transshipment process. This makes the BOOSTER ideal for working with delicate crops and seed.The BOOSTER is used to load the seed drills.
The hydraulically folded 520 mm diameter auger provides an unloading speed of up to 11.5 tons per minute.
Thanks to the mathematically calculated design, the hopper has only one discharge point, which ensures increased reliability and efficient discharge.This is the best solution that ensures minimal residual cargo (no more than 5 kg) and greatly simplifies cleaning.
The BOOSTER auger head can move not only vertically but also from right to left. This significantly increases the speed and uniformity of grain truck filling compared to conventional hoppers.
The built-in weighing system not only displays data on the harvested crop and yield on each field section, but also prevents unauthorized diversion of grain.
BOOSTER can be equipped with cameras that provide maximum visibility for the operator.
The BOOSTER is designed in a modular fashion, which makes it very quick to repair and assemble/disassemble, for example, for long-distance transportation.
If necessary, the BOOSTER can be quickly and conveniently equipped with a fire module, which is operated by one person (the driver) and allows you to quickly localize the fire.
Technical characteristics of the Booster |
|
|---|---|
| Useful hopper volume | 31 м³ |
| Load capacity | 22 5000 kg |
| Mass. | 30 650 кг |
| Required tractor power | 200 к.с. |
| Speed allowed (no more) - empty - repetitive |
30 km/h 10 km/h |
| Number of augers | 1 |
| Screw diameter | 520 мм |
| Screw performance (discharge speed) | 11,5 т/хв |
| Number of axes | 1 |
| Rosvantazhannya height | 4 300 мм |
| Brake system | drum, pneumatic |
| Tyres | 800/65 R32 |
| Transport width | 2 990 мм |
| Width with maximally extended axle | 3 490 мм |
| Dimensions in transport position (length × width × height) | 8 250 × 2 990 × 3 995 мм |
